Caterpillar

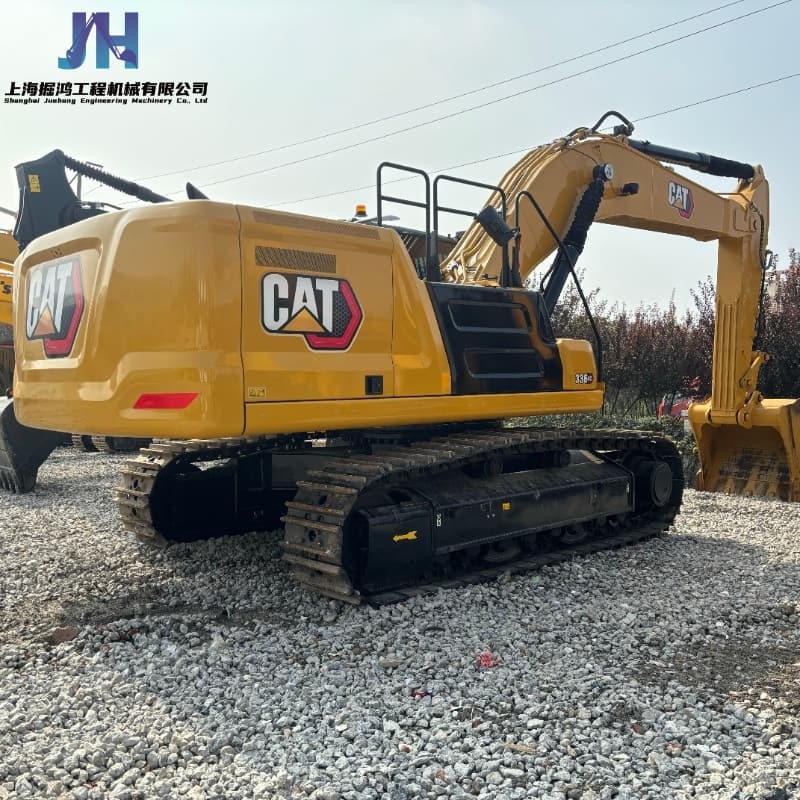

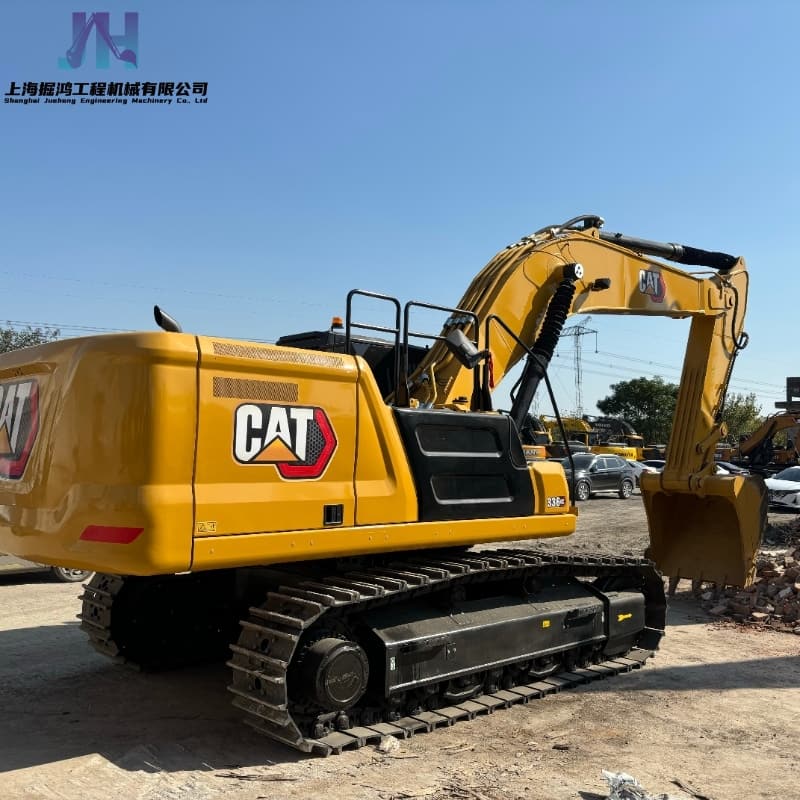

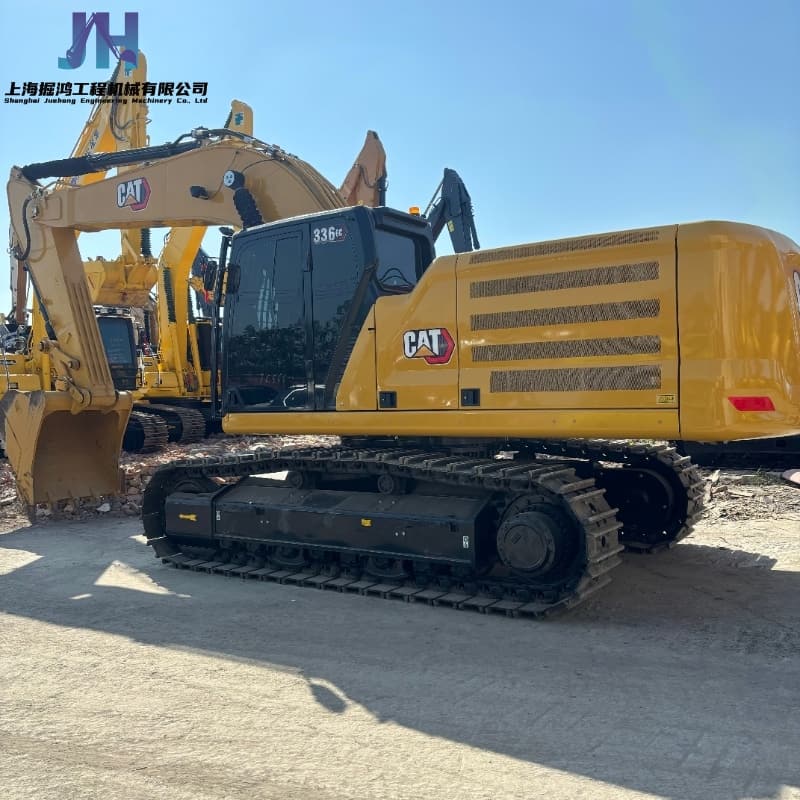

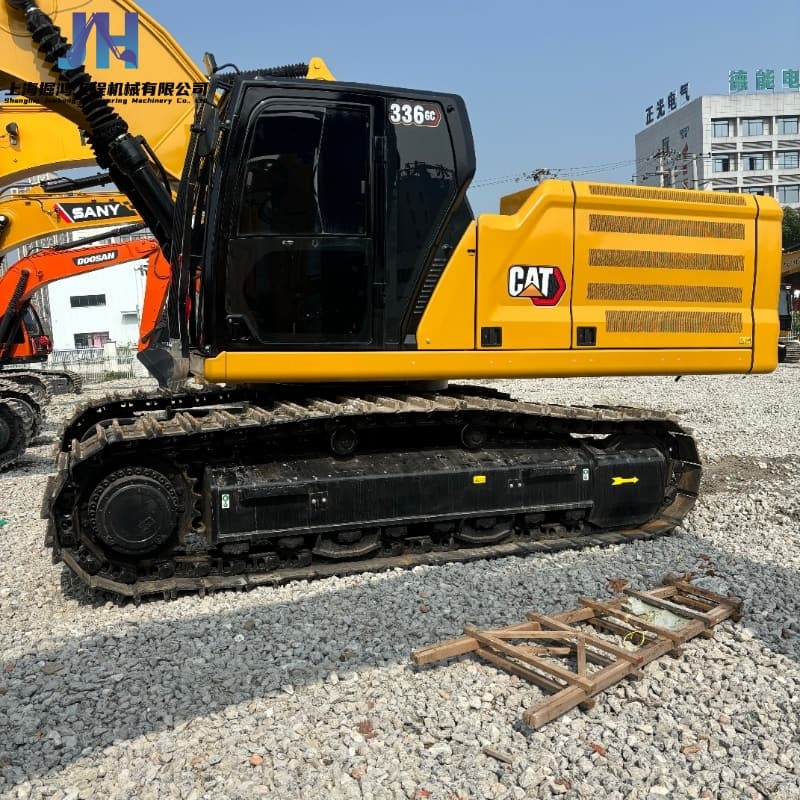

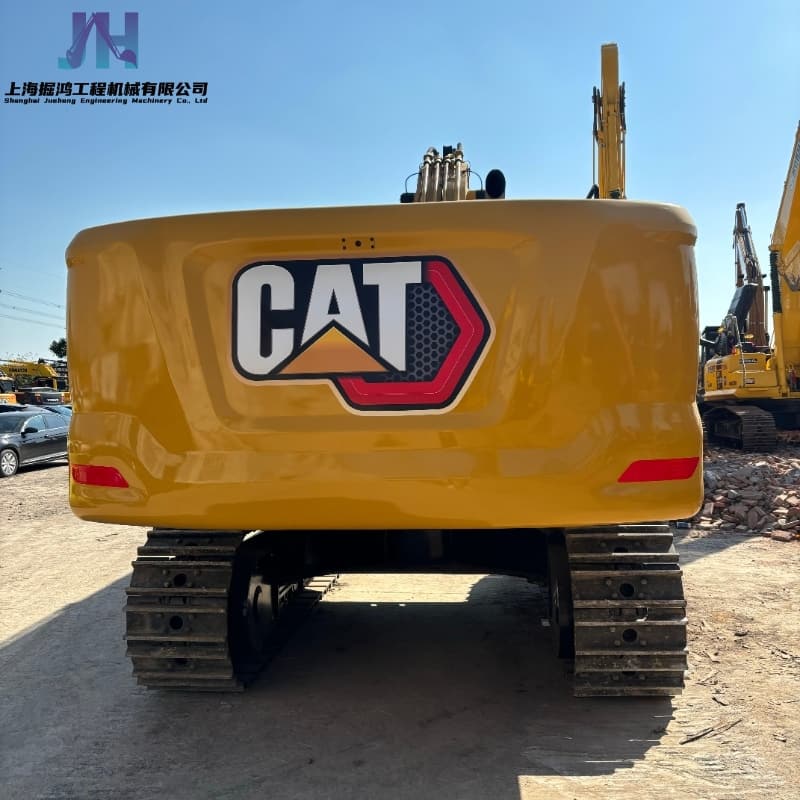

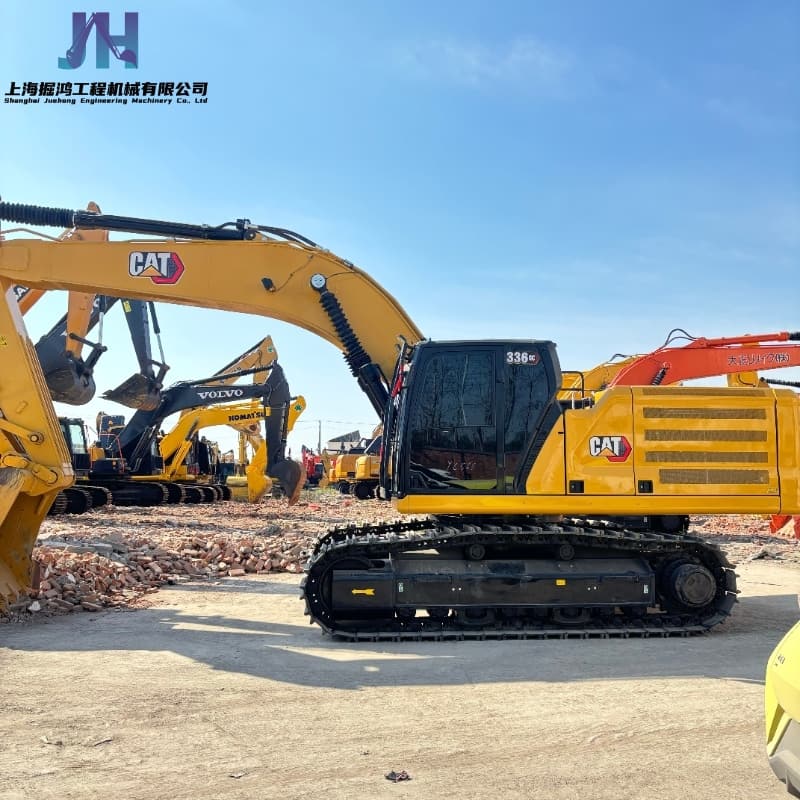

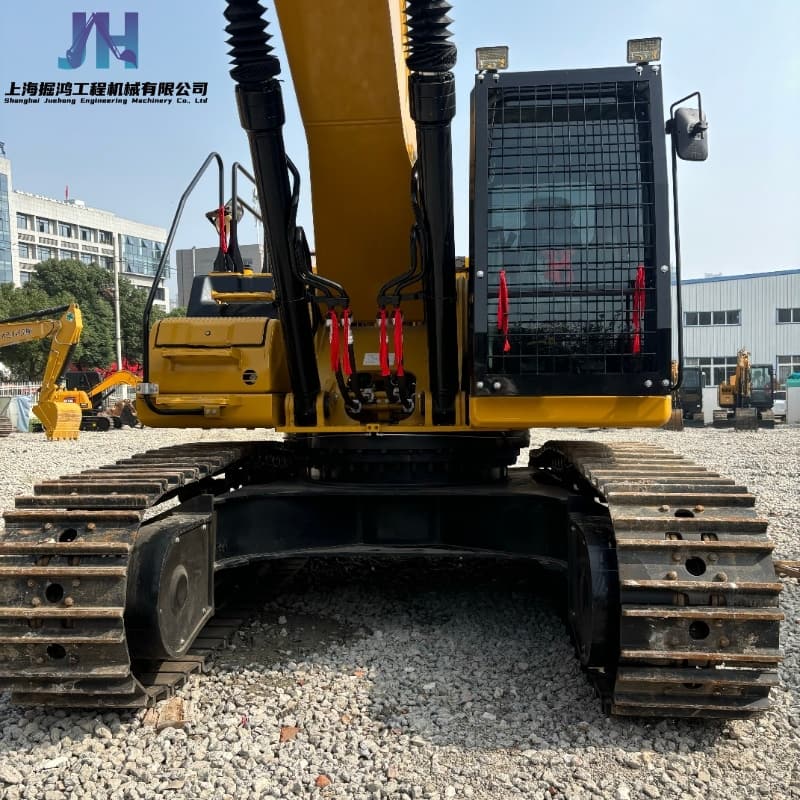

Cost-effective Heavy-duty Second Hand CAT 336GC Large Crawler Excavator Machine

Fob Price	$32,000-$35,000 / Unit
Min. Order	1 Unit
Operating Weight	33900kg
Bucket capacity	1.88m³
Power	195kw
Model	336GC
shipping	Support Ocean Freight / Land Freight

All product models
Best price
Delivery fast

Inquire Now Contact Us

Detailed Description

Product Details
No	Item	Data
1	Type	CAT 336GC
2	Operating weight	33900kg
3	Bucket capacity	1.88m³
4	Boom length	6500mm
5	Stick length	3200mm
6	Rotation speed	8.74r/min
7	Walking speed	4.7km/h
8	Gradeability	70%
9	Bucket digging force	197KN
10	Stick digging force	148KN
11	Engine	Cat
12	Rated power	195kw

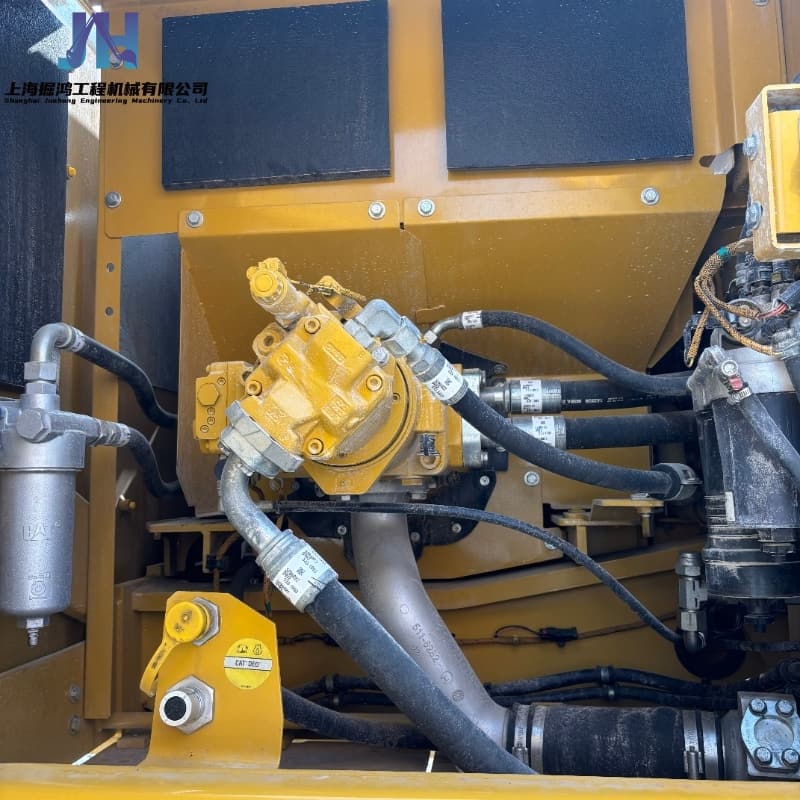

13	Hydraulic pump	Cat
14	Distribution valve	Cat
15	Displacement	7.1L
16	Cooling method	water-cooling
17	Fuel tank	600L
18	Length	11170mm
19	Width	3190mm
20	Height	3170mm
21	Maximum excavation radius of the parking surface	11050mm
22	Maximum excavation depth	7520mm
23	Maximum excavation height	10300mm
24	Maximum unloading height	7080mm
25	Maximum vertical excavation depth	5660mm

Packing and Shipping

Packing detail: Pallet. Delivery time: It depends on the purchasing quantity and the stocks, if the warehouse have, we may arrange the delivery in 7 days,or a few days after receiving the deposit.
